2000-06-22: ceria-zirconia-yttria

GOAL

$Ce^{4+}/Ce^{3+}$ reduction energy in the $Ce_{0.5}Zr_{(0.5-y)}Y_yO_{2-\frac{y}{2}},\ 0\le{}y\le0.5$ system

Results

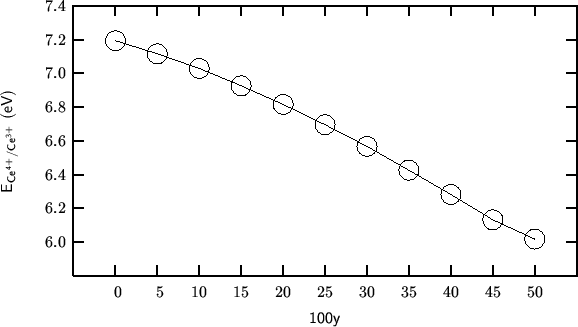

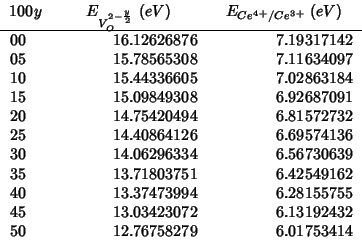

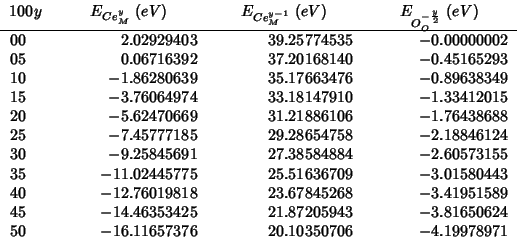

$Ce^{4+}/Ce^{3+}$ reduction energy

The $Ce^{4+}/Ce^{3+}$ reduction energy was evaluated according to the procedure outlined in section 2000-06-21.

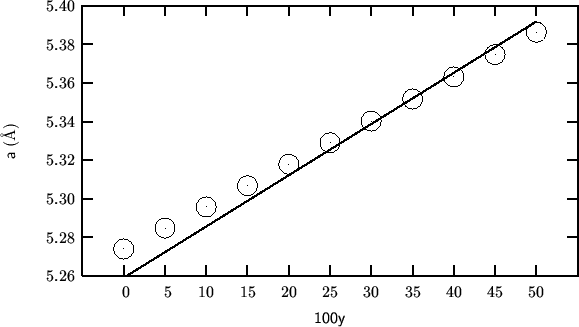

Lattice parameter

The following compares presently calculated lattice parameters with the empirical equation of Kim (1989), which, for the present case $Ce_{0.5}Zr_{(0.5-y)}Y_yO_{2-\frac{y}{2}}$, reads as:

$$\begin{eqnarray*} d_{Ce}&=&0.5413\\ &&+\left(0.0220(r_{Zr^{4+}}-r_{Ce^{4+}})\ri... ...{Y^{3+}}-r_{Ce^{4+}})+0.00015(z_{Y^{3+}}-z_{Ce^{4+}})\right)100y \end{eqnarray*}$$

with $d_{Ce}$ and the $r$'s in $nm$, or:

$$\begin{eqnarray*} d_{Ce}&=&5.413\\ &&+\left(0.0220(r_{Zr^{4+}}-r_{Ce^{4+}})\rig... ..._{Y^{3+}}-r_{Ce^{4+}})+0.0015(z_{Y^{3+}}-z_{Ce^{4+}})\right)100y \end{eqnarray*}$$

with $d_{Ce}$ and the $r$'s in Å.

The values of the various parameters are (Shannon, 1976):

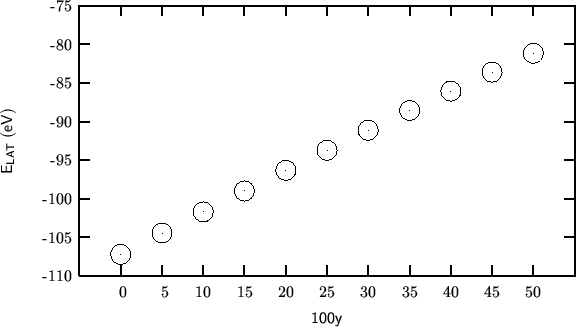

Lattice energy

Representative input file

opti conp defect

maxcyc opt      200
maxcyc fit      200
dump every   1 03-oimp-y10.dump
title
O impurity
end

cell
   5.329267   5.329267   5.329267  90.000000  90.000000  90.000000

fractional    7
Ce4   core 0.0000000 0.0000000 0.0000000 -3.7000000 0.5     0.00000
Zr    core 0.0000000 0.0000000 0.0000000 2.64999999 0.40    0.00000
Y     core 0.0000000 0.0000000 0.0000000 3.00000000 0.10     0.00000
O     core 0.2500000 0.2500000 0.2500000 0.07700000 0.97500     0.00000
Ce4   shel 0.0000000 0.0000000 0.0000000 7.70000000 0.5     0.00000
Zr    shel 0.0000000 0.0000000 0.0000000 1.35000000 0.40     0.00000
O     shel 0.2500000 0.2500000 0.2500000 -2.0769999 0.97500     0.00000

space
225

size            9.0  20.0000
centre          0.25 0.25 0.25
impurity  O     0.25 0.25 0.25

species   9
Ce3    core   -4.700000
Ce3    shel    7.700000

buck
Ce4   shel O     shel  1986.8300     0.351070  20.400      0.000 15.000
Zr    shel O     shel   985.86900    0.376000    0.0       0.000 10.000
Y     core O     shel  1345.1000     0.349100    0.0       0.000 15.000
Ce3   shel O     shel  1731.6181     0.363720   14.433     0.000 15.000
O     shel O     shel 22764.300      0.149000   27.890     0.000 15.000
spring
Ce4    291.75000
Zr     169.61700
Ce3    291.75000
O      27.290000
