Titolazione di $Ag^+$ con $NaCl$

\begin{eqnarray*} Ag^++Cl^-&=&AgCl\downarrow \end{eqnarray*}

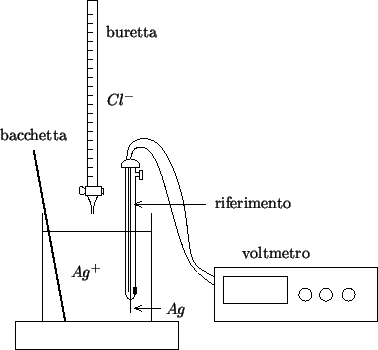

\begin{psfrags}\psfrag{dummy}{}\psfrag{voltmeter}{voltmetro}\psfrag{stic... ...\psfrag{ref} [l][l]{riferimento} \includegraphics{ag-cl-combo.eps} \end{psfrags}

\begin{eqnarray*} Ag+e&=&Ag \end{eqnarray*}

\begin{eqnarray*} E_{Ag^+/Ag}&=&E^\circ_{Ag^+/Ag}+\frac{RT}{F}\ln\left[Ag^+\righ... ..._{rif}\\ &=&\mbox{costante}+\frac{RT}{F}\ln\left[Ag^+\right]\\ \end{eqnarray*}

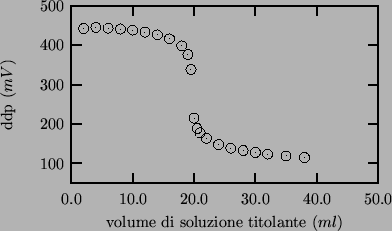

\begin{center}\vbox{\input{ag-cl-pot.pslatex} }\end{center}
